HAWEEL DIY 6 x 18650 Battery 24W Fast Charge Power Bank Box Case with Display, Not Include Battery

About This Product

Features

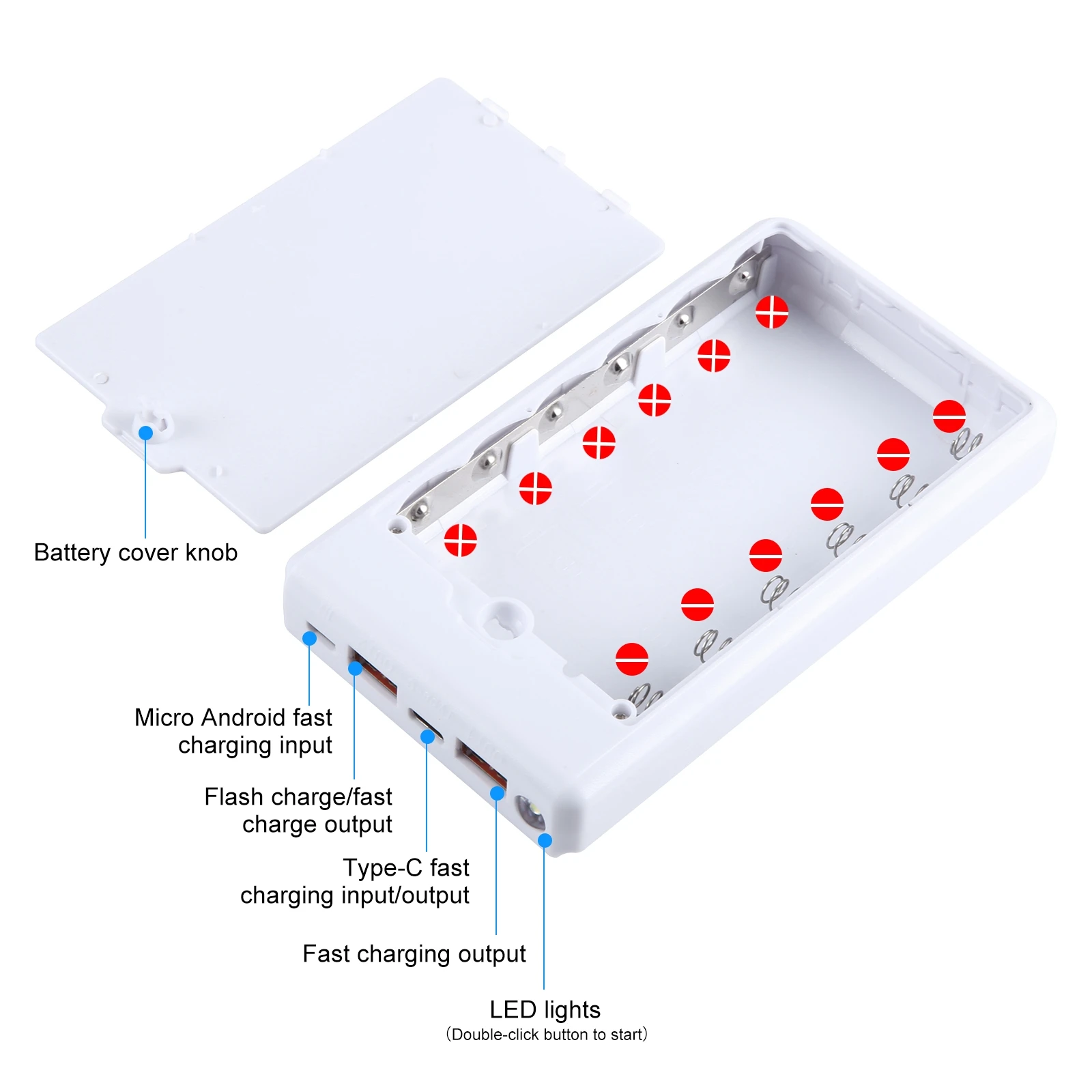

1. 6 x 18650 batteries power bank without soldering (battery not included)
2. Built-in anti-reverse chip, the motherboard will not be burned when reverse installation
3. High-bright lighting (press and hold the switch for 3 seconds to wake up)
4. MAX supports 24W
5. Support VOOC 20W fast charging for Apple
6. Support 22.5W, suitable for Huawei
7. Supports Samsung/Xiaomi/OPPO/vivo fast charging fast charging
8. Charging current up to 5A, efficiency up to 96%
9. Support two-way fast charging
10. Hardware-integrated Bidirectional Marker Codec (BMC) protocol
11. Integrated physical layer protocol (PHY)
12. Integrated hardware CRC
13. Support Hard Reset
14. Support temperature loop control
15. Automatic load detection/light load detection
16. Support fast charging status indication
17. Input overvoltage and undervoltage protection
18. Output overcurrent, overvoltage and short circuit protection
19. Battery overcharge, over-discharge, and over-current protection
20. Built-in IC over-temperature protection
21. Integrated charging and discharging battery temperature NTC protection
22. ESD 4KV

Warm reminder: This product does not include batteries. The battery in the picture is only used to demonstrate how to use the product.

Specifications
1. Shell material: ABS plastic
2. Output fast charging protocol: Support PPS/PD3.0/PD2.0, QC3.0/QC2.0, AFC, FCP, supports SCP, PE2.0/PE1.1, SFCP, low voltage direct Charge
3. Input fast charging protocol: Support PD3.0/PD2.0, AFC, FCP
